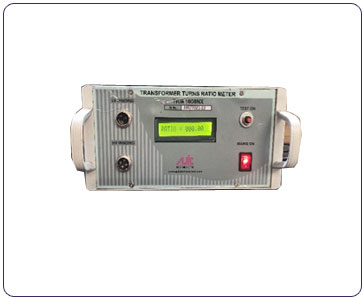

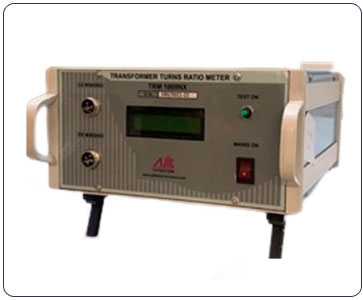

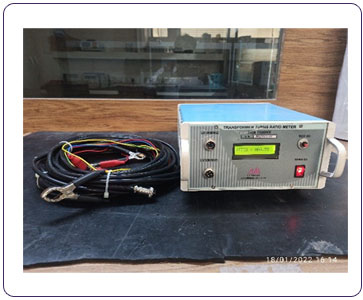

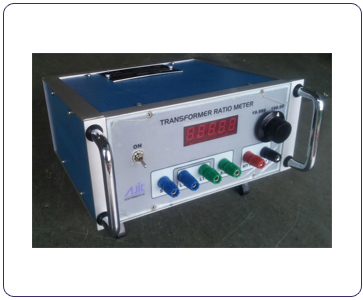

## 1 Phase Ratio Meter

##
**We AJIT ELECTRONICS CORPORATION are Manufacturers, Exporters & Leading Suppliers of Transformer Ratio Meter, Turns Ratio Meter, Transformer Turns Ratio Meter, Turns Ratio Tester, TRM1000, Ratio Meter Loacated in Dombivli, Thane, Mumbai, India.**

** GENERAL **

AJIT Transformer Ratio meters are the most modern turn’s ratio meters widely used to test the turn’s ratio of high voltage windings to low voltage windings of Transformer. These meters are accurate, compact & light in weight.

** APPLICATION : **

Transformer Ratio Meters / TRM 1000 are the most modern digital turn's ratio meters widely used to test the turn's ratio of high voltage windings to low voltage windings of any transformer. These meters are accurate, compact & light in weight.

We have with us a quality range of Transformer Ratio Meters / TRM 1000. These have 4 ½ digit direct read-out and are widely used to test the turn's ratio of high voltage windings to low voltage windings of any transformer.

** SALIENT FEATURES : **

**» ** Design with latest Technology.

**» ** 4 Digit Direct read- out in Digital type.

**» ** Compact and light weight.

**» ** Economical

** TECHNICAL SPECIFICATIONS : **

MODEL /TYPE |
MEASURING RANGE |
DISPLAY |
POWER/REQUIREMENT |
ACCESSORIES |

TRM-1000 NX
Digital type |
A) 0 TO 20 B) 20 TO 200 Auto-ranging |
4 Digit, LED Type |
230V AC, 50Hz, Single Phase |
A) Mains Cor |

B) Test Leads | ||||

C) Instruction Manual |

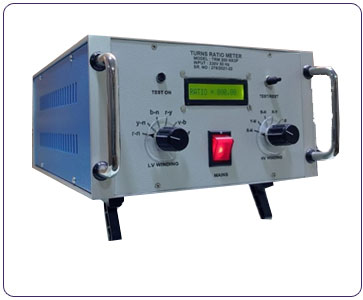

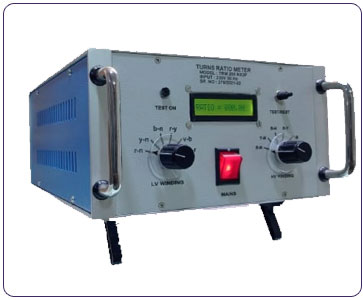

## THREE PHASE TRANSFORMER RATIO

** GENRAL: **

AJIT Transformer Ratio meters are the most modern turn’s ratio meters widely used to test the turn’s ratio of high voltage windings to low voltage windings of Transformer. These meters are accurate, compact & light in weight.

** FEATURES: **

Excitation On HV side.

** TECHNICAL SPECIFICATION **

MODEL/TYPE | MEASURING RANGE | DISPLAY | POWER REQUIRMENT | HV EXCITATION VOLTAGE |

TRM-200 NX | A) 0 to 20 | 4 Digit, | 230V AC, 50 Hz, | 58 to 60 V AC 50 Hz |

Digital type | B) 20 to 200 | LCD type | ||

Auto-ranging |

EXCITATION CURRENT |
WEIGHT (APPROX) |
DIMENSION (mm) |
ACCESSORIES |

500 m A |
(4.5 KG- TRM)
(1.5 KG- LEADS) |
FRONT-
h- 152 , W- 254,
D- 254 |
A) Mains Card
B) Test Leads
C) Instruction manual |
