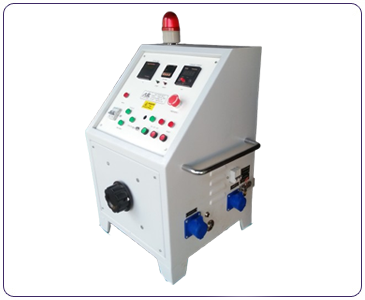

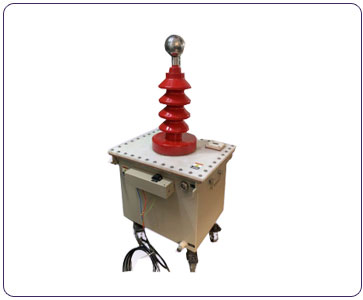

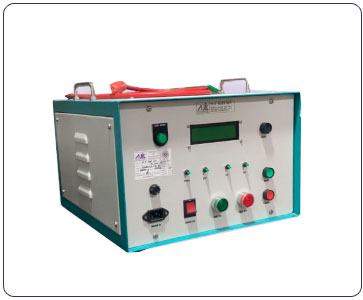

HV TEST SET

We AJIT ELECTRONICS CORPORATION are Manufacturers, Exporters & Leading Suppliers of HV Tester / High Voltage Test Set / High Voltage Tester / High Voltage Test Kit / HV Tester / High Voltage Breakdown Tester / Hi-Pot Tester / HV Test Kit / HV test Set / Hi-POT Test Kit / HV breakdown Tester / AC HV test Kit Loacated in Dombivli, Thane, Mumbai, India.

APPLICATION
For High Voltage withstand, breakdown testing of electrical insulating systems.
For Dielectric Strength testing of electrical / electronic components, small appliances, tools, motors, machines etc.

FEATURES
» Compact & Simple to Operate
» Zero Interlock for H.V. Output
» Analog or Digital read outs
» Adjustable, selectable leakage current.
» Audio visual indication for presence of high voltage
» Continuosly variable test voltage
» Highly sensitive electronics circuit for tripping
» Avaliabe in AC,DC as well as AC & DC Combined
» Outputs upto 100KV.
» Available with built - in printer and or /RS 232 interface.
» H.V. Test sets of other specifications as per requirement can be supplied.

AUTOMATIC VERSION
Following parameters can be set by 4x4 matrix keypad
A) Output Test Voltage
B) Leakage / Trip Current Limit
C) Test Duration (Time)
HV built in printer, with Rs232 interface & with both
the feature are considered as Automatic version HV
test set. In Automatic HV Test Set both types like with
AC output & with DC output instruments are available.

SEMI AUTOMATIC VERSION
Following parameters can be set by push button with potentiometer / thumb wheel switch.
A) Output Test Voltage
B) Leakage / Trip Current Limit
C) Test Duration (Time)
» Once above parameters set and the high voltage is started the instrument will automatically raise the voltage.
» On reaching of the test voltage, control circuit will start to command to timer. After completion of duration motor will come back.
» Object Test Fail Indication is given.

FEATURES
Input Supply : 230V AC, Single Phase, 50 Hz
Metering : a) Analog / Digital Kv meter. b) Analog /Digital mA Meter c) Digital Timer
Transformer : a) Upto 5 Kv- oven baked varnished type b) Upto 50Kv - Epoxy Resin Cast Type
Indications : a) H.T. ON b) H.T. OFF c) Mains ON
Enclosure : H.V. Test Sets are housed in powder coated sheet metal cabinets
H. V. Probe : H.V. Test probe with 1.5 mtr. Cable will besupplied along with H.V. Testers upto 10Kv range.

TECHNICAL SPECIFICATIONS :

Sr. No. Model No. O/P Voltage Trip Current
1 HV.1 0 To 5Kv 30mA
2 HV.2 0 To 5Kv 100mA
3 HV.3 0 To 10kV 30mA
4 HV.4 0 To 10kV 100mA
5 HV.5 0 To 20Kv 30mA
6 HV.6 0 To 20Kv 100mA
7 HV.7 0 TO 30 Kv 20mA
8 HV.8 0 To 30 Kv 100mA
9 HV.9 0 To 50 kv 20mA
10 HV.10 0 To 50 kv 50mA
11 HV.11 0 To 50Kv 100mA
12 HV.12 0 To 60Kv 50mA
13 HV.13 0 To 60kV 75mA
14 HV.14 0 To 60kV 100mA
15 HV.15 0 To 75Kv 50mA
16 HV.16 0 To 75Kv 75mA
17 HV.17 0 To 75 Kv 100mA
18 HV.18 0 To 100 Kv 50mA
19 HV.19 0 To 100 kv 75mA
20 HV.20 0 To 100 kv 100mA

ORDERING INFORMATION

Output Analog Meters Analog Meters with Digital Timer Digital Meters Digital Meters with Digital Timer Digital Meters with built in Printer Digital Meters with RS232 interface Digital meters with printer & RS232 interface Semi Automatic
AC HV # HV # T HV # DIGI HV # T DIGI HV # P HV # RS HV # PRS HV # SEMI
DC - - HV # D HV # D T HV # D P HV # D RS HV # D P RS HV # D SEMI
AC/DC Combined - - HV # AD HV # AD T HV # AD P HV # AD RS HV # AD P RS HV # A D SEMI
