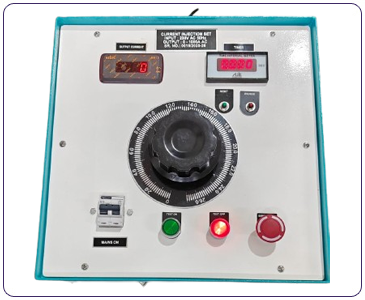

Current Injection Set
|
Features
• Built in µp based time interval meter measuring from 1 millisec to 9999 secs.
• Panel with easy & clear legends to read.
• Continuously variable outputs.
• Digital ammeter & voltmeter.
• Auto cut-off & output isolated.
• Self sensing of contacts i.e. NO or NC.
• Potential free start - stop signals.
• Fully portable , table top models with metal cover |
 |
| |
 |
| |

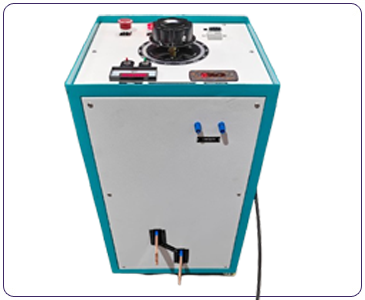

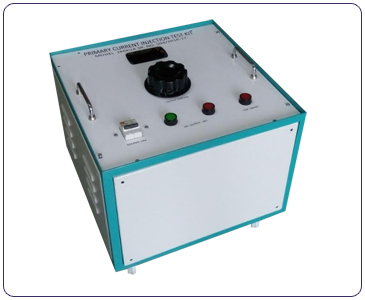

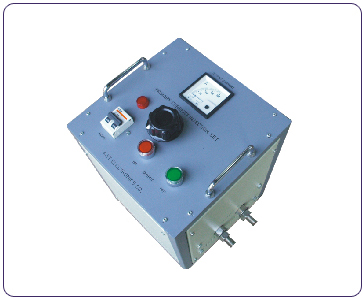

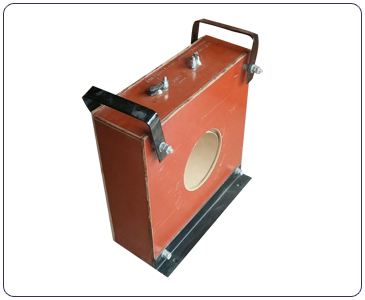

| Primary current injection sets |
| |
| Model
|
Current Output AC
|
Metering
|
| AEP - 1
|
1000 A / 2 V
|
500 A / 4V
|
250A / 8V
|
|
a) 3 1/2 Digit, Digital ammeter
OR
b) Analog ammeter with multiplying factor |
| AEP - 2
|
1000 A / 5 V
|
500 A / 10V
|
250A / 20V
|
|
| AEP - 3
|
2000 A / 2 V
|
1000 A / 4V
|
500A / 8V
|
250 A /16 V
|
| AEP - 4
|
2000 A / 4V
|
1000 A / 8V
|
500A / 16V
|
250 A /32 V
|
| AEP - 5
|
3000 A / 2 V
|
1500 A / 4V
|
750A / 8V
|
|
| AEP - 6
|
4000 A / 2 V
|
2000 A / 4V
|
1000A / 8V
|
|
| AEP - 7
|
5000 A / 2 V
|
2500 A / 4V
|
1250A / 8V
|
|
| Supply voltage: |
230V AC +/- 10%,50 Hz. |
| Indications: |
Main ON, Output ON, Output OFF. |
| Operation: |
Contactor controlled push buttons for output ON/OFF. |
| Duty cycled: |
30 Min ON /15 min. OFF. |
| Protection: |
a) Fuse / MCB . b) Over current protection. |
| Termination: |
The outputs are brought out on the suitable bus bars |
| |
|
|
Secondary current injection sets / Relay test sets |
| Models
|
Current output AC, Variables
|
Optional voltage Output
|
| AC
|
DC
|
| AE -1
|
100A / 3 V
|
75A / 4 V
|
50A / 6V
|
25A / 12V
|
5A / 60V
|
2A / 150V
|
250 V / 2A
|
250 V / 1.5A
|
| AE-2
|
200A / 4 V
|
100A / 8 V
|
50A / 16V
|
25A / 32V
|
10A / 80V
|
5A / 160V
|
250 V / 4A
|
250 V / 1.5A
|
| AE-3
|
300A / 4 V
|
200A / 6 V
|
150A / 8V
|
100A / 12V
|
50A / 24V
|
4A / 250V
|
250 V / 4A
|
250 V / 1.5A
|
| RTS 25
|
25A / 10 V
|
5A / 50 V
|
-
|
-
|
|
|
250 V / 1A
|
250 V / 1A
|
| • |
Supply voltage |
: |
230V AC +/- 10%,50 Hz. |
| • |
Metering |
: |
a) 3 1/2 Digit digital Voltmeter
b) 3 1/2 Digital percentage Ammeter
c) 4 Digit up based time interval meter 9.999 / 99.99 / 999.9 / 9999 secs. selectable. |
| • |
Timer Control Circuit |
: |
The timer automatically starts when the output is initiated and automatically stops when the device under test operates. |
| • |
Test Conditions |
: |
a) Current activated device without auxiliary contacts.
b) NO contacts.
c) NC contacts. |
| • |
Auto cut-off |
: |
Cuts off output on operation of item under test |
| • |
Operation : |
: |
Contactor controlled push buttons for output ON/OFF. |
| • |
Duty cycled |
: |
120Min ON / 30 min. OFF. |
| • |
Indications |
: |
Main ON, Output ON, Output OFF |
| • |
Protection |
: |
a) Fuse / MCB . b) Over current protection |
|
|
